Clean Architecture + Bounded Contexts diagram

I’m happy to release a two Clean Architecture + Bounded Contexts diagrams into the public domain (CC0 1.0).

I created these diagrams for Wikimedia Deutchland with the help of Jan Dittrich, Charlie Kritschmar and Hanna Petruschat. They represent the architecture of our fundraising codebase. I explain the rules of this architecture in my post Clean Architecture + Bounded Contexts. The new diagrams are based on the ones I published two years ago in my Clean Architecture Diagram post.

Diagram 1: Clean Architecture + DDD, generic version. Click to enlarge. Link: SVG version

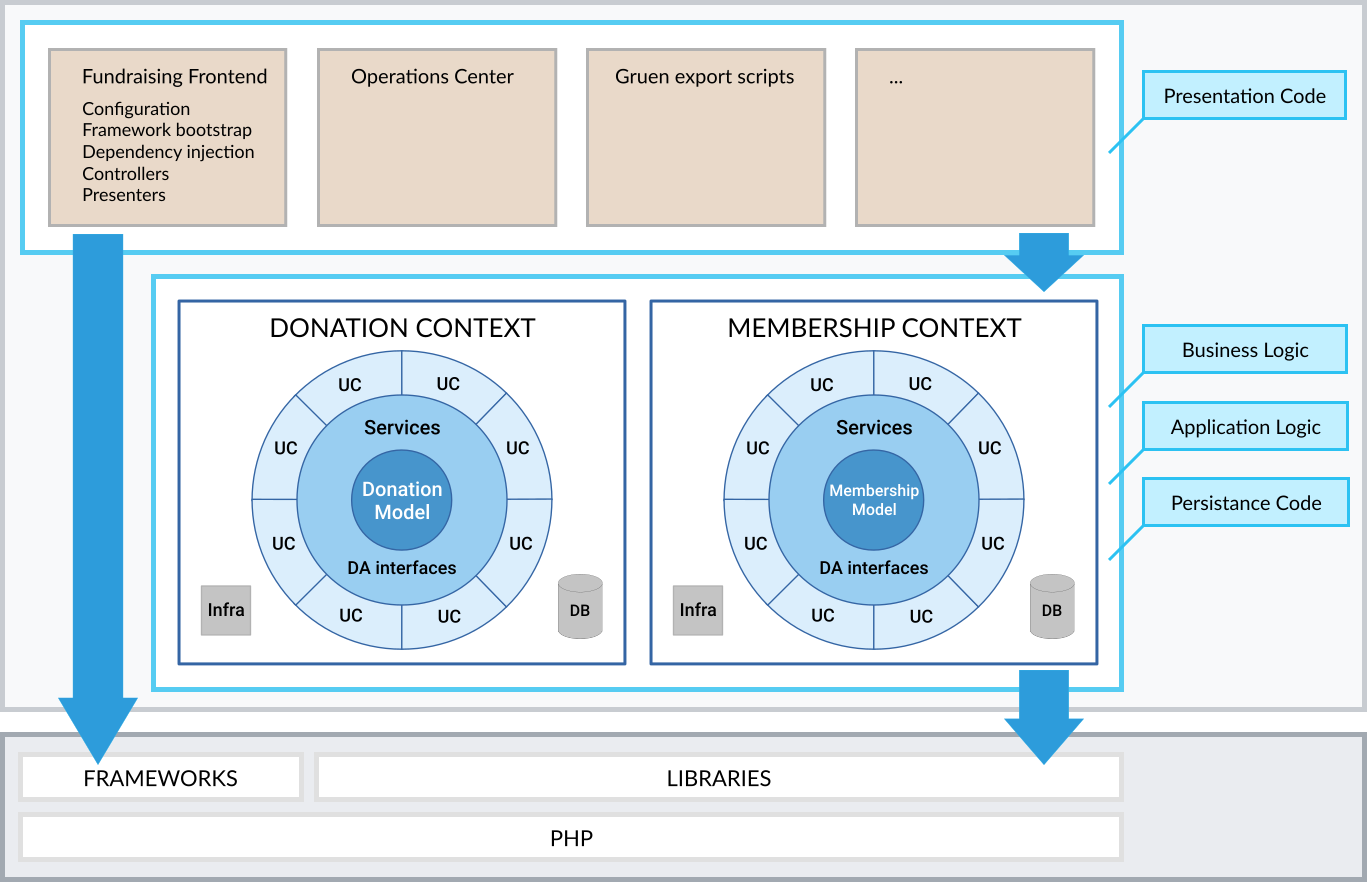

Diagram 1: Clean Architecture + DDD, fundraising version. Click to enlarge. Link: SVG version
